To mount Starlink on a roof, use one of three methods: a pivot mount screwed into rafters (best signal, requires flashing), a non-penetrating ballast mount (no drilling, weighted with pavers), or a chimney strap mount. All three work — the right choice depends on your roof type and warranty.

Method 1: Pivot Mount with Flashing (Best Long-Term)

Locate rafters with a stud finder. Position mount so the pipe clears the ridge for full sky view. Peel back shingles, install flashing over rafter, screw base to rafter through flashing, seal with roof sealant (Geocel or NP1), lay shingles back over flashing edges. Attach Starlink Pivot Mount and run cable through weather-sealed pass-through.

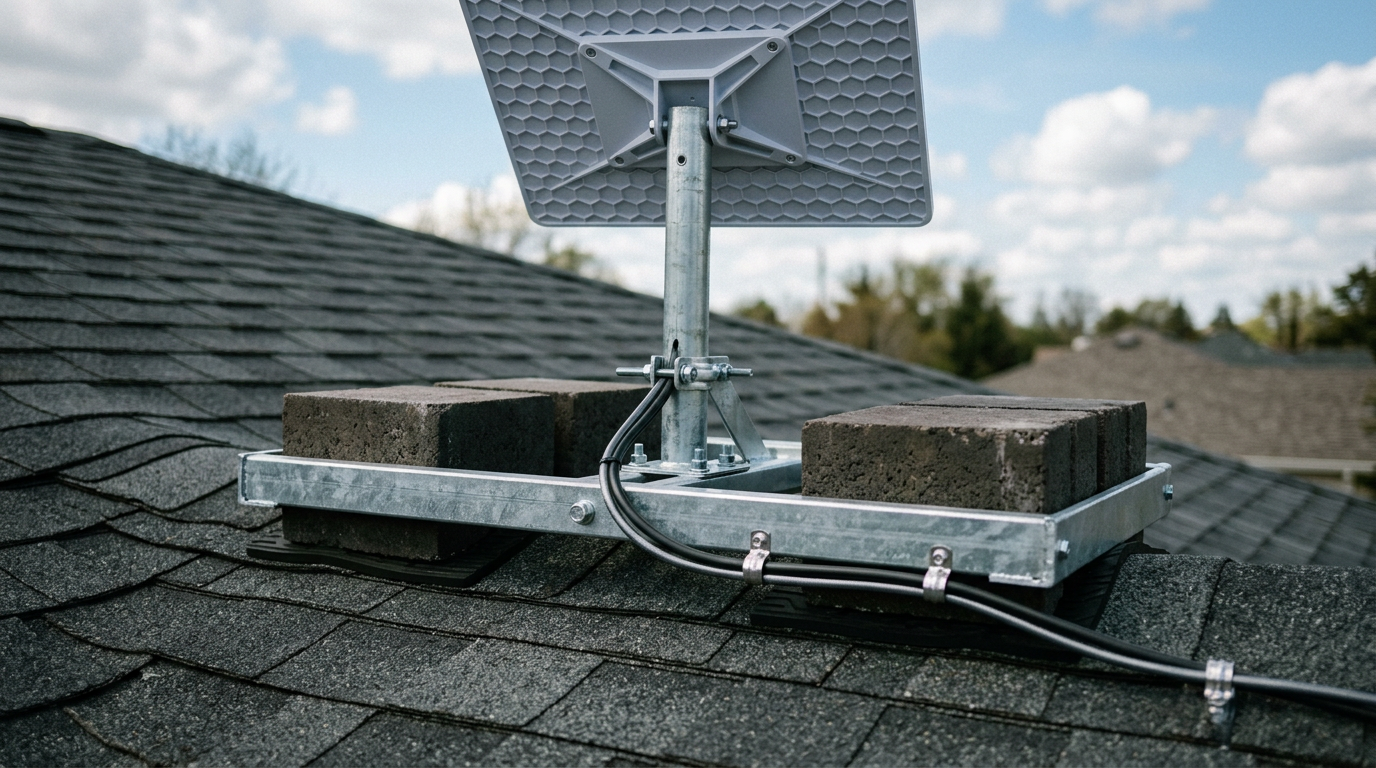

Method 2: Non-Penetrating Ballast Mount (No Drilling)

Great for flat roofs, tile, or when you want zero warranty concerns. Uses concrete pavers (4x16'' or similar) to hold the base. Works fine even in high wind when properly weighted (typically 60–80 lbs of ballast). Not recommended on steep pitched roofs.

Method 3: Chimney Strap Mount

If your chimney is solid and above the roofline, wrap it with stainless steel bands and clamp a J-pipe to hold the dish. No roof penetration. Confirm chimney structural integrity first — old brick can fail under wind load.

Avoid These Mistakes

Don't skip the flashing — caulk alone will fail in 2–3 years. Don't mount to fascia board (it's not structural). Don't over-tighten screws through shingles. Don't run cable across sharp roof edges without a chafe guard.

Frequently Asked Questions

Does mounting Starlink void my roof warranty?

Penetrating mounts may void a shingle warranty depending on manufacturer. Non-penetrating ballast mounts do not.

What kind of screws should I use?

Stainless steel lag screws (5/16'' x 3'') driven into a rafter, never just decking.

How do I seal the cable pass-through?

Use a purpose-built weather boot with a flashing collar, then seal with polyurethane sealant.

Can I mount on a metal roof?

Yes — use rubber-gasketed metal-roof screws or a standing-seam clamp (no drilling).

Should I hire a pro?

For pitched or high roofs, yes. A leak from a bad install costs more than the install.
